Quick answer:
Custom jigsaw puzzle manufacturing involves a highly controlled eight-step process. The workflow includes artwork preparation, board material selection, printing, mounting, custom die cutting, interlocking engineering, surface finishing, and packaging customization. Working with an experienced OEM/ODM manufacturer ensures exceptional image fidelity, tight piece fit, and retail-ready product presentation.
A finished puzzle looks remarkably simple when fully assembled. Customers rarely realize that the product passes through at least seven controlled production stages before it ships from the factory.
Understanding the custom jigsaw puzzle manufacturing process helps procurement managers, brand sourcing teams, and product developers make informed decisions. Every choice you make—from selecting the right grey board to specifying the exact die cut—directly affects product quality, per-unit cost, and total lead time.
Yang & Yan Puzzle produces over 50,000 high-quality custom puzzles daily. With more than a decade of experience as a dedicated OEM/ODM puzzle manufacturer, we understand exactly how to turn raw materials into premium retail products. This guide details the complete manufacturing flow so you can successfully scope your next project, evaluate supplier capabilities, and prepare a comprehensive request for quotation.
Table of Contents
Before diving into the technical details, let us outline the entire workflow. The custom jigsaw puzzle manufacturing sequence typically follows these eight distinct steps:
Artwork preparation and prepress file checks.
Selection of puzzle board materials.
High-resolution printing on premium paper.
Mounting the printed sheet to the core board.
Precision die cutting to separate the pieces.
Surface finishing and texturing.
Box creation and packaging customization.
Comprehensive quality control (QC) at every checkpoint.
Every stage is a quality checkpoint, not just a procedural step. Failing to monitor moisture during the mounting phase, for instance, leads to warped boards during the die cutting stage.
The production cycle always begins with digital artwork. Procurement teams must submit files that meet specific print standards to ensure vibrant, accurate results.
Manufacturers require high-resolution files, usually 300 DPI (dots per inch) or higher. The artwork must use the CMYK color mode rather than RGB, as CMYK aligns with physical printing presses. Files should also include a bleed area—an extra margin of artwork extending beyond the final cut line—to prevent unprinted white edges.
Color proofing serves as the ultimate safeguard for your brand accuracy. Before full-scale production begins, the prepress team generates a physical or digital proof. This allows buyers to verify that the printed colors perfectly match the original design. Common mistakes buyers make when submitting artwork include forgetting the bleed margin, using low-resolution images, and leaving text too close to the cutting edge.
Selecting the right core material fundamentally dictates how the puzzle feels in the hands of the consumer.
Sustainability remains a top priority for modern consumers. Manufacturers offer several recycled puzzle materials to meet this demand. You can choose from grey board, white board, blue board, black board, and even wooden board for premium lines. Grey board consists entirely of recycled paper pulp, making it a highly cost-effective and environmentally friendly option.
The thickness of the board controls the tactile satisfaction and longevity of the puzzle. Standard boards range from 1.5mm to 2.5mm in thickness. Thicker boards resist bending and tearing, which is essential for children's puzzles or premium adult collectibles.
Consider this material comparison to guide your decision:
Grey Board: High durability, slightly textured edges, highly sustainable, typically used for standard retail puzzles.
White Board: Excellent durability, clean white edges, moderate sustainability, used for premium and artistic puzzles.
Blue/Black Board: Premium durability, colored edges for aesthetic appeal, lower sustainability, ideal for luxury collector editions.
Wooden Board: Maximum durability, smooth laser-cut edges, sustainable if FSC-certified, used for heirloom or boutique puzzles.
Choose grey board if keeping per-unit costs low matters more than achieving a premium aesthetic. Opt for white or wooden board if your target audience expects luxury craftsmanship.
Image fidelity depends entirely on the printing and mounting phases. Factories use advanced offset printing presses to apply CMYK inks onto specialized art paper. This method guarantees sharp lines, vibrant colors, and consistent shading across thousands of units.
Once the paper is printed, operators feed it through a mounting machine. This machine applies a thin, even layer of industrial adhesive to bind the printed paper to the chosen puzzle board. Mounting precision prevents bubbling, peeling, and warping. The factory controls temperature and humidity tightly during this phase so the adhesive cures perfectly flat.
The actual separation of the board into individual pieces requires immense force and precision. This process relies on custom jigsaw puzzle die cutting.
Engineers develop custom die cuts by embedding razor-sharp steel blades into a thick wooden block. A heavy hydraulic press then forces this die board through the mounted puzzle board. A high-quality die cuts cleanly through the material without leaving frayed edges or connected pieces.
Unique, non-repeating piece shapes prevent consumer frustration. If two pieces share the exact same shape, users will misplace them in areas of solid color, ruining the assembly experience. Manufacturers design custom grids that ensure every single piece features a distinct contour. We also offer special-shape die cut capabilities, allowing brands to create puzzles shaped like animals, logos, or geographic regions.
A premium puzzle stays together when you lift it. This requires expert puzzle interlocking design.
Engineers calculate piece size, weight, and shape to achieve a tight friction fit between adjacent pieces. Strong interlocking means the knobs and holes of the pieces grip each other securely. When interlocking design is executed flawlessly, good interlocking removes the need for puzzle glue. Consumers can roll or lift assembled sections without the pieces crumbling apart.
Surface finishes protect the printed image and enhance the tactile experience. During the finishing stage, manufacturers apply coatings to the printed paper layer.
You must choose between glossy and matte finishes. Glossy varnish makes colors pop and adds a bright shine, while matte lamination eliminates overhead glare. For a truly unique product, factories offer special finishes like a linen texture, gold or silver foil stamping, and soft-touch foil. These tactile enhancements drastically increase perceived value and retail shelf appeal, allowing brands to command higher price points.
Your custom puzzle packaging serves as the customer's first physical interaction with your brand. The box must protect the contents while acting as a miniature billboard on the retail shelf.

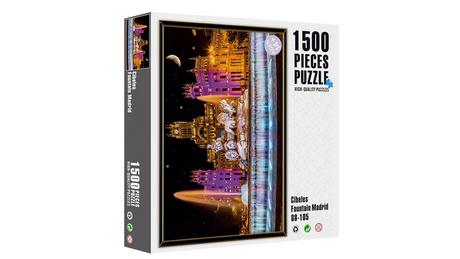

Factories offer a wide variety of structural formats. The standard two-piece lid and bottom box remains the most popular due to its sturdiness and stackability. For more creative presentations, buyers can select slide drawer boxes, clamshell designs, cylinder tubes, and even custom structural shapes.
As brands move away from single-use plastics, manufacturers provide eco-friendly packaging alternatives. Instead of sealing the loose pieces in a traditional poly bag, you can specify a reusable canvas pouch or a sealed kraft paper bag. You can also replace the outer plastic shrink wrap with biodegradable tamper-evident sticker seals.
Matching the piece count to your target demographic determines the product's commercial success. Custom puzzle manufacturers support a wide spectrum of puzzle piece count options, ranging from 24 pieces for toddlers up to 2,000 pieces for dedicated hobbyists.
Use this size and piece-count reference table to align your product with the right audience:

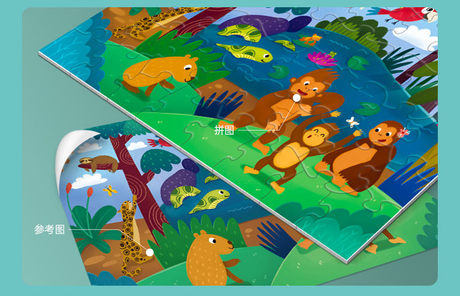

24 to 100 Pieces: Large pieces, high durability. Best for young children and promotional giveaways.
200 to 300 Pieces: Medium pieces, moderate complexity. Best for older children and casual family activities.
500 Pieces: Standard pieces, accessible challenge. Best for casual adult puzzlers and tourist souvenirs.
1,000 Pieces: Standard pieces, high complexity. The global standard for retail art puzzles and adult hobbyists.

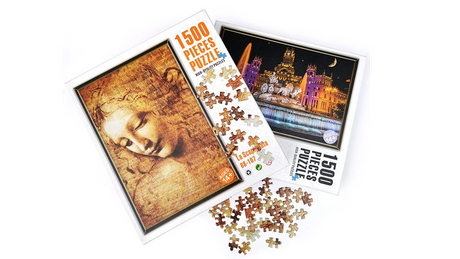

1,500 to 2,000+ Pieces: Small pieces, extreme complexity. Best for dedicated collectors and premium retail lines.
Send your artwork and target demographic details to our team for a size evaluation if you remain unsure about the best configuration.
Quality control (QC) guarantees that the final delivery matches your approved sample. Factories conduct rigorous QC checks at four critical junctures: print, fit, finish, and packaging.
Inspectors check the printed sheets for color accuracy and ink smudges. During die cutting, they assemble random samples to verify interlocking tightness and look for frayed cardboard edges. At the packaging station, automated scales weigh every single box. If a box weighs slightly less than the baseline metric, it flags a missing piece, and the unit is discarded. Buyers should always ask a manufacturer to verify their missing-piece rate and daily production capacity.
Partnering with the right factory streamlines your supply chain. An OEM (Original Equipment Manufacturer) produces puzzles based entirely on your provided designs and specifications. An ODM (Original Design Manufacturer) provides existing templates, artwork, and structural designs that you can brand as your own.
When evaluating an OEM/ODM puzzle production partner, prioritize factories that offer low Minimum Order Quantities (MOQ), rapid prototyping, and custom production support.
Before requesting a formal quote, gather the following information to ensure accurate pricing:
Final artwork files or concepts.
Target puzzle dimensions.
Desired piece count.
Specific board materials and thickness.
Packaging type and finishing preferences.
Total order quantity.
Custom Jigsaw Puzzle Manufacturer
How are custom jigsaw puzzles manufactured from start to finish?
Custom jigsaw puzzle manufacturing follows a strict workflow: artwork preparation, high-resolution printing, mounting the print to a core board, precision die cutting, surface finishing, customized packaging, and continuous quality control checks.
What board materials are used for custom jigsaw puzzles?
Manufacturers primarily use grey board, white board, blue board, black board, and wooden board. Grey board is the most common recycled eco-friendly option, while blue, black, and wooden boards offer premium durability for luxury products.
What is puzzle die cutting and why does it matter for quality?
Puzzle die cutting involves using a steel-blade press to cut the board into individual pieces. High-quality die cutting utilizes unique, non-repeating piece shapes and custom die cut development to ensure clean edges and prevent consumers from placing pieces in the wrong spots.
What packaging options are available for custom puzzles?
Brands can choose from lid/bottom boxes, slide drawers, clamshells, cylinders, tubes, and custom shapes. Environmentally conscious brands can also specify plastic-free kraft bags and paper seals instead of traditional poly bags and shrink wrap.
What information should I prepare before requesting a custom puzzle quote?
To receive an accurate manufacturing quote, prepare your artwork files, target completed size, desired piece count, core board material, packaging type, surface finishing requirements, and your estimated order quantity.
Producing a flawless jigsaw puzzle requires deep technical expertise. The production flow moves systematically from digital artwork and prepress checks directly into precise printing, mounting, and heavy-duty die cutting. Your specific material, interlocking, finishing, and packaging choices ultimately drive the final quality and market viability of the product.
By understanding these manufacturing variables, you can confidently navigate supplier negotiations and deliver a product that delights your consumers. Request a custom puzzle quote from Yang & Yan Puzzle today. Our engineering team will review your specifications and help you bring your next successful puzzle line to life.
